A Novel Lightweight Wearable Device to Perform Balance Exercises at Home

Scientists develop an innovative device to help older individuals train their posture control, minimizing the risk of falls and associated injuries

Maintaining balance and posture is quite a complex skill, even though it comes naturally to most people. However, postural control tends to worsen with age due to various reasons, such as muscle weakness coupled with changes in vision and sensory input. This explains why older people are much more prone to falling and suffering fall-related injuries than younger individuals. Approximately 40% of older individuals have been reported to fall at least once a year.

In this regard, over the past few decades, scientists have found that postural control can be improved through various exercises, which in turn helps prevent falls. It is possible to train and cultivate the ability to perform compensatory postural adjustments (CPAs) to counteract the effects of unexpected external perturbations. Although scientists have come up with specialized devices to perform balance exercises involving unexpected perturbations, these machines are generally bulky, expensive, and complex to use, rendering them suitable for clinical settings only.

But could there be a more practical way to perform these exercises comfortably at home? In a recent study published in IEEE Journal of Translational Engineering in Health and Medicine on 31 August 2023, a research team led by Assistant Professor Masataka Yamamoto from Tokyo University of Science (TUS), Japan, and including Professor Hiroshi Takemura, Mr. Daiki Yoshikawa, and Mr. Taku Washida from TUS, as well as Professor Koji Shimatani from the Prefectural University of Hiroshima, explore this question. For their research, the researchers developed an innovative wearable balance exercise device (WBED) and investigated its effects on CPAs and reactive postural control.

The proposed wearable device uses two pneumatic artificial muscles (PAMs) to generate unexpected perturbations. These PAMs, which resemble a pair of hollow shoulder straps or suspenders, can be forced to extend or contract by regulating the air pressure inside them. For this purpose, the WBED includes a set of electronically controlled valves connected to a can of compressed gas. This enables a computer program or smartphone application to control the valves and quickly fill or empty either PAM with gas, producing a force that pulls the user sideways in a specific direction.

To test whether WBED can truly improve reactive postural control, the researchers recruited 18 healthy adult males and divided them randomly into two groups: WBED and sham. All participants first underwent an evaluation of reactive balance. They had to hold a tandem stance for one minute while air cylinders on both sides of the hips pushed them laterally at unpredictable moments. The participants in the WBED group then performed a few rounds of balance training using the proposed device, while the sham group underwent the same exercises without unexpected perturbation. Lastly, a second evaluation was performed to check for improvements in postural control.

The researchers measured several variables as outcomes during the evaluations, including peak displacement, time at peak displacement, peak velocity, and root mean square of the soles' center of pressure. Notably, participants in the WBED group exhibited lower displacement and peak velocity after exercising with the device. "Our results prove that perturbation-based balance exercises using WBED immediately improve the subjects' reactive postural control," remarks Dr. Yamamoto, satisfied with their findings. "Wearable exercise devices, such as the proposed WBED, could contribute to the prevention of falls and fall-related injuries."

In the near future, the proposed device could revolutionize how people with a high tendency to fall perform balance training, especially in countries with a steadily aging population like Japan. "We designed WBED to be lightweight, portable, and easy to use both at home and in clinical settings. It weighs only 0.9 kg and takes less than three minutes to put on," highlights Dr. Yamamoto. By training regularly with WBED, older individuals and people undergoing physical therapy can efficiently improve postural control and responsiveness, which in turn would prevent falls and improve their overall health. Notably, WBED could also be useful for athletes who want to improve their balance.

Let us hope that wearable devices become a mainstay in balance training and health care monitoring, providing a boost to the Internet of Things technology!

A Novel Lightweight Wearable Device to Perform Balance Exercises at Home

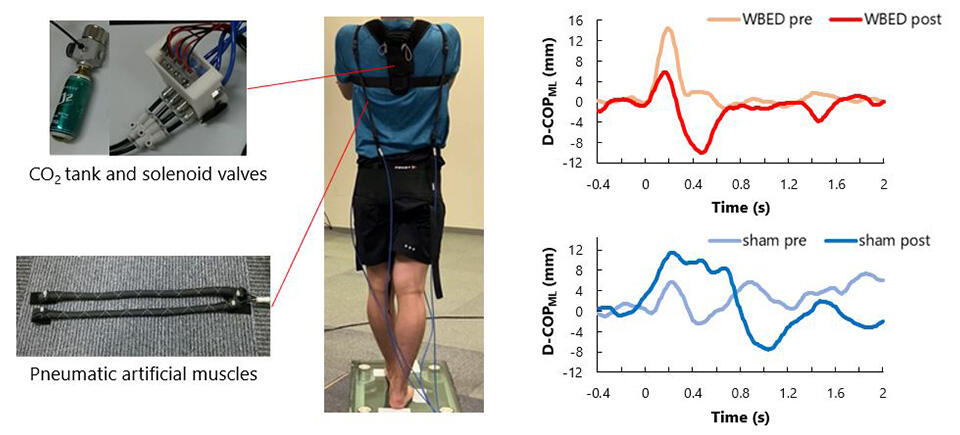

Image title: Balance training using a wearable device to improve reactive postural control
Image caption: (Left) Pneumatic artificial muscles in the wearable device generate small disturbances. By holding a posture against these disturbances, a user can improve their reactive postural control. (Right) Plots showing how the displacement of the center of pressure of the user's soles in the mediolateral direction (D-COPML) significantly decreased in the group that trained with the device (WBED) compared to the 'sham' group. An unexpected perturbation was generated at 0 seconds.
Image credit: Masataka Yamamoto from TUS Japan
License type: Original content

Title of original paper  : Perturbation-based Balance Exercise Using a Wearable Device to Improve Reactive Postural Control
Journal  : IEEE Journal of Translational Engineering in Health and Medicine
DOI  : 10.1109/JTEHM.2023.3310503
