Redox-Based Transistor as a Reservoir System for Neuromorphic Computing

Researchers develop an ionic device utilizing redox reactions as a major step towards using physical reservoir computing

Physical systems known as "reservoirs" are designed to emulate neural networks and meet the need for improved computational efficiency and speed. Overcoming the previous issues with compatibility, performance, and integration of such reservoir systems, researchers from Japan have recently developed an ion-gating transistor with improved reservoir states and short-term memory capabilities based on redox reactions. This development opens us the possibility of utilizing redox-based ionic devices for high-performance neuromorphic computing.

With major breakthroughs in artificial intelligence, image recognition, and object detection, the field of computing has witnessed a remarkable revolution in recent times. Being a data-driven field, the efficient analysis and processing of large and complex datasets is of utmost importance in computing. To enhance the efficiency and speed of data-driven tasks, researchers are exploring the possibility of recognizing complex patterns and relationships inherent in the data for the development of high-performance "neuromorphic" computing technology. This cutting-edge approach aims to replicate the brain's ability to process information in a parallel and interconnected manner. By doing so, it seeks to construct a network of nodes capable of transforming data into high-dimensional representations suitable for complex tasks like pattern recognition, prediction, and classification.

Physical reservoirs resembling neural networks receive and interact with input signals or data, and their constituent elements, namely neurons and their interconnections, dynamically change over time. These reservoir states represent the physical system at a specific point and play a vital role in transforming input signals into high-dimensional representations. Securing the high dimensionality of a physical reservoir to achieve a sufficiently large number of reservoir states is, however, a challenging task.

Now, in a study published in the journal Advanced Intelligent Systems, researchers from Japan led by Associate Professor Tohru Higuchi at Tokyo University of Science (TUS) have developed a redox reaction-based ion-gating reservoir (redox-IGR) that can achieve a record-high number of reservoir states. With this development, Dr. Higuchi, along with Mr. Tomoki Wada and Mr. Daiki Nishioka from TUS, and Dr. Takashi Tsuchiya and Dr. Kazuya Terabe from National Institute for Materials Science (NIMS), Japan, have now advanced the possibility of translating higher-performance neuromorphic computing technology into a reality.

Ion-gating reservoirs consist of gate, drain, and source electrodes and are separated by an electrolyte that acts as a medium to control the flow of ions. Applying a voltage to the gate electrode triggers a redox reaction within the channel connecting the source and drain electrodes, resulting in a drain current that can be precisely modulated. Converting the time-series datasets into gate voltages can thus allow the corresponding output currents to serve as distinct reservoir states.

In this study, the researchers used lithium (Li+) ion conducting glass ceramic (LICGC) as an electrolyte. In LICGC, the Li+ ions travel faster compared to the channel, leading to the generation of two output currents ー the drain current and an additional gate current, effectively doubling the number of reservoir states. Moreover, the different rates of ion transport in the channel and the electrolyte results in a delay in response of the drain current compared to the gate current. This delayed response enables short-term memory capabilities within the system, allowing the reservoir to retain and utilize information from past inputs, a crucial requirement for physical reservoirs.

To fabricate this device, the researchers deposited a 200-nm thick film of lithium cobalt oxide (LiCoO2) onto a 0.15-mm thick LICGC substrate. The gate electrode was composed of a thin film of Li-ion/platinum (Pt), while Pt thin films were used for the drain and source electrodes. The channel connecting the drain and source electrodes consisted of a 100-nm thick tungsten (VI) oxide (WO3) thin film.

"We have successfully reproduced electrical characteristics similar to those of neural circuits by utilizing redox reactions induced by the insertion and desorption of Li+ ions into the LixWO3 thin film," explains Dr. Higuchi.

Demonstrating remarkable capabilities, the device achieved a total of 40 reservoir states (20 from the drain current and 20 from the gate current). It outperformed other physical reservoirs such as memristors and spin torque devices when solving second-order nonlinear dynamic equations. Most notably, the nonlinearity, the short-term memory capabilities, and the high number of reservoir states enabled the device to make predictions with a low mean square prediction error of 0.163 in the second-order nonlinear autoregressive moving average (NARMA2) task ー a benchmark test for evaluating the performance of a reservoir system in performing complex nonlinear operations and predicting the future value of a time-series input based on its past values of both input and output.

Explaining the real-life implications of this development, Dr. Higuchi concludes, "The developed system has the potential to become a general-purpose technology that will be implemented in a wide range of electronic devices including computers and cell phones in the future."

Redox-Based Transistor as a Reservoir System for Neuromorphic Computing

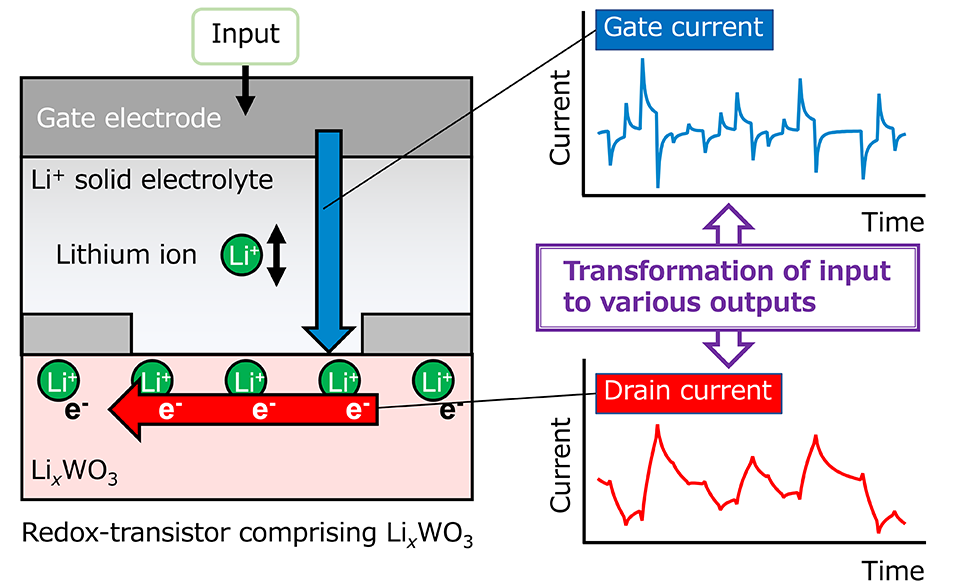

Image Title: Redox-based ion-gating reservoir for high-performance neuromorphic computing.

Image Caption: Researchers from TUS and NIMS in Japan have developed a redox-based ion-gating reservoir comprising of LixWO3 thin film and lithium-ion conducting glass ceramic (LICGC). The input gate voltage triggers the transport of lithium ions in the channel and the electrolyte. The difference in ion transport rates leads to a gate and a drain output current that serve as reservoir states.

Image Credit: Dr. Tohru Higuchi from Tokyo University of Science, Japan.

License type: Original content

Title of original paper  : A Redox-Based Ion-Gating Reservoir, Utilizing Double
Reservoir States in Drain and Gate Nonlinear Responses
Journal  : Advanced Intelligent Systems
DOI  : 10.1002/aisy.202300123
About The Tokyo University of Science

Tokyo University of Science (TUS) is a well-known and respected university, and the largest science-specialized private research university in Japan, with four campuses in central Tokyo and its suburbs and in Hokkaido. Established in 1881, the university has continually contributed to Japan's development in science through inculcating the love for science in researchers, technicians, and educators.

With a mission of "Creating science and technology for the harmonious development of nature, human beings, and society", TUS has undertaken a wide range of research from basic to applied science. TUS has embraced a multidisciplinary approach to research and undertaken intensive study in some of today's most vital fields. TUS is a meritocracy where the best in science is recognized and nurtured. It is the only private university in Japan that has produced a Nobel Prize winner and the only private university in Asia to produce Nobel Prize winners within the natural sciences field.

Tokyo University of Science(About TUS)

Research List

Press Releases List

About Associate Professor Tohru Higuchi from Tokyo University of Science

Tohru Higuchi is a member of the Department of Applied Physics at Tokyo University of Science. He received his bachelor's degree in Applied Physics from Tokyo University of Science in 1995, where he later earned his master's and PhD. His research focuses on functional material science, with a particular emphasis on thin-film/surface and interfacial physical characteristics, as well as inorganic industrial materials. He has published over 200 articles and earned several honors, including those for his contributions to the GREEN-2019 conference and the 2019 International Symposium on Advanced Material Research. For more info, please visit the links below:
Laboratory website
Official TUS website

Funding information

This work was in part supported by Japan Society for the Promotion of Science (JSPS) KAKENHI Grant Number JP22H04625 (Grant-in-Aid for Scientific Research on Innovative Areas "Interface Ionics"), JP21J21982 (Grant-in-Aid for JSPS Fellows) and the Yazaki Memorial Foundation for Science and Technology.
