Explainable AI-Based Physical Theory for Advanced Materials Design

Scientists develop an "extended Landau free energy model" for causal analysis and visualization in nano-magnetic devices with AI and topology.

Microscopic image data is key to developing low-power, high-speed electronic devices. However, the complex interactions in nanoscale magnetic materials are difficult to understand. A research group from Japan realized a new functional design theory called "extended Landau free energy model" that combines topology and AI with free energy to automate the interpretation of the microscopic image. This model illustrates the physical mechanism and critical location of magnetization reversal and proposes a device structure with low energy consumption.

Explainable AI-Based Physical Theory for Advanced Materials Design

Microscopic materials analysis is essential to achieve desirable performance in next-generation nanoelectronic devices, such as low power consumption and high speeds. However, the magnetic materials involved in such devices often exhibit incredibly complex interactions between nanostructures and magnetic domains. This, in turn, makes functional design challenging.

Traditionally, researchers have performed a visual analysis of the microscopic image data. However, this often makes the interpretation of such data qualitative and highly subjective. What is lacking is a causal analysis of the mechanisms underlying the complex interactions in nanoscale magnetic materials.

In a recent breakthrough published in Scientific Reports, a team of researchers led by Prof. Masato Kotsugi from Tokyo University of Science, Japan succeeded in automating the interpretation of the microscopic image data. This was achieved using an "extended Landau free energy model" that the team developed using a combination of topology, data science, and free energy. The model could illustrate the physical mechanism as well as the critical location of the magnetic effect, and proposed an optimal structure for a nano device. The model used physics-based features to draw energy landscapes in the information space, which could be applied to understand the complex interactions at the nanoscales in a wide variety of materials.

Explainable AI-Based Physical Theory for Advanced Materials Design

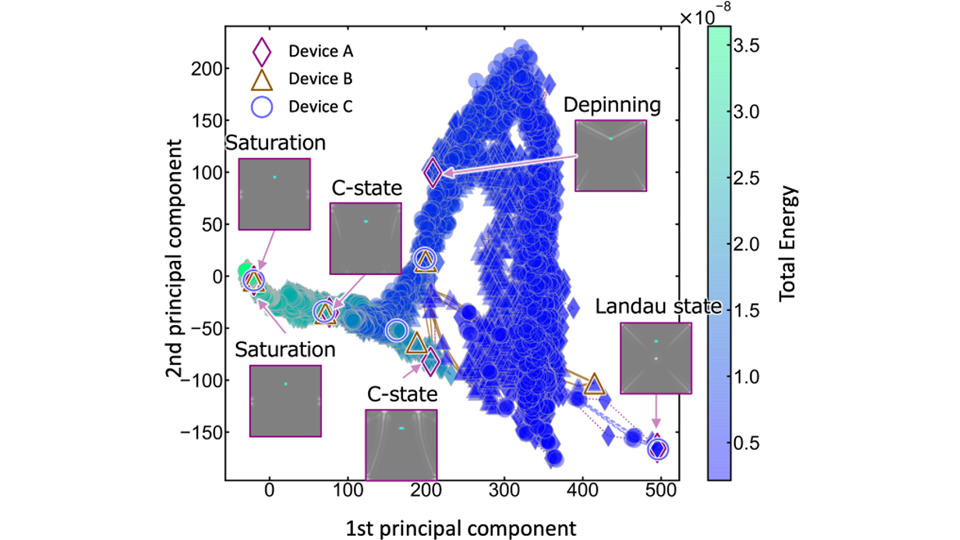

Image 1: Extended Landau Free Energy Model.

Image caption: Scatterplot of the dimensionality reduction results of principle component analysis. Color represents the total energy. The relationship between magnetic domain and total energy is connected in the explainable feature space.

Image credit: Masato Kotsugi from Tokyo University of Science, Japan.

License type: CC BY 4.0

"Conventional analysis are based on a visual inspection of microscope images, and the relationships with the material function are expressed only qualitatively, which is a major bottleneck for material design. Our extended Landau free energy model enables us to identify the physical origin and location of the complex phenomena within these materials. This approach overcomes the explainability problem faced by deep learning, which, in a way, amounts to reinventing new physical laws," Prof. Kotsugi explains. This work was supported by KAKENHI, JSPS, and the MEXT-Program for Creation of Innovative Core Technology for Power Electronics Grant.

When designing the model, the team made use of the state-of-art technique in the fields of topology and data science to extend the Landau free energy model. This led to a model that enabled a causal analysis of the magnetization reversal in nanomagnets. The team then carried out an automated identification of the physical origin and visualization of the original magnetic domain images.

Explainable AI-Based Physical Theory for Advanced Materials Design

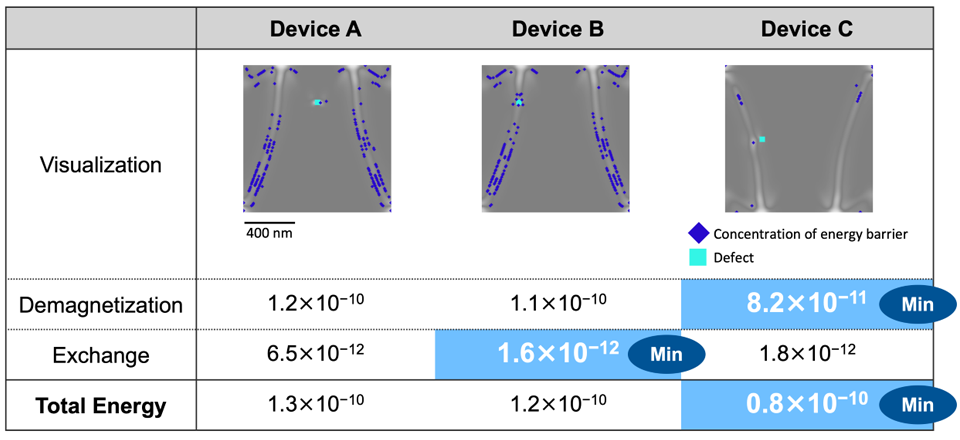

Image 2: Results of causal analysis and visualization.

Image caption: Scientists from TUS have succeeded in visualizing slight changes in microscopic images and understanding the mechanisms that have been difficult to analyze visually. Furthermore, they have succeeded in inverse designing nanostructures with low energy consumption.

Image credit: Masato Kotsugi from Tokyo University of Science, Japan.

License type: Original content.

Their results indicated that the demagnetization energy near a defect gives rise to a magnetic effect, which is responsible for the "pinning phenomenon." Further, the team could visualize the spatial concentration of energy barriers, a feat that had not been achieved until now. Finally, the team proposed a topologically inverse design of recording devices and nanostructures with low power consumption.

The model proposed in this study is expected to contribute to a wide range of applications in the development of spintronic devices, quantum information technology, and Web 3.

"Our proposed model opens up new possibilities for optimization of magnetic properties for material engineering. The extended method will finally allow us to clarify 'why' and 'where' the function of a material is expressed. The analysis of material functions, which used to rely on visual inspection, can now be quantified to make precise functional design possible," concludes an optimistic Prof. Kotsugi.

Reference
Title of original paper  : Causal Analysis and Visualization of Magnetization Reversal using Feature Extended Landau Free Energy
Journal  : Scientific Reports
DOI  : 10.1038/s41598-022-21971-1
About The Tokyo University of Science

Tokyo University of Science (TUS) is a well-known and respected university, and the largest science-specialized private research university in Japan, with four campuses in central Tokyo and its suburbs and Hokkaido. Established in 1881, the university has continually contributed to Japan's development in science by inculcating a love for science in researchers, technicians, and educators.

With a mission of "Creating science and technology for the harmonious development of nature, human beings, and society", TUS has undertaken a wide range of research from basic to applied science. TUS has embraced a multidisciplinary approach to research and has undertaken intensive study in some of today's most vital fields. TUS is a meritocracy where the best in science is recognized and nurtured. It is the only private university in Japan that has produced a Nobel Prize winner and the only private university in Asia to produce Nobel Prize winners within the natural sciences field.

■Tokyo University of Science(About TUS) : https://www.tus.ac.jp/en/about/
■Research List: https://www.tus.ac.jp/en/news/03/
About Professor Masato Kotsugi from Tokyo University of Science

Professor Masato Kotsugi graduated from Sophia University, Japan, in 1996 and subsequently received his Ph.D. from the Graduate School of Engineering Science at Osaka University, Japan in 2001. He joined the Tokyo University of Science in 2015 as a lecturer and is currently a Professor at the Faculty of Advanced Engineering, Department of Materials Science and Technology. Prof. Kotsugi and his students conduct cutting-edge research on high-performance materials to create a green energy society. He has published over 127 refereed papers and is currently interested in solid-state physics, magnetism, synchrotron radiation, and materials informatics. He can be reached at: kotsugi@rs.tus.ac.jp

Laboratory website
Official TUS website

Funding information

This study was supported by KAKENHI, JSPS [21H04656]. Part of this study was supported by MEXT-Program for Creation of Innovative Core Technology for Power Electronics Grant Number JPJ009777, and KAKENHI, JSPS [19K22117, 22K14590].
