New Strategy for Drug Design: Keeping Copper Atoms Closer to Keep Bacteria Away

Scientists engineer a copper-containing polymer that greatly boosts the antimicrobial activity of hydrogen peroxide

Hydrogen peroxide reacts with copper to produce hydroxyl radicals with strong antibacterial properties. However, this requires high copper concentrations because two copper atoms have to come close together, which occurs by chance. Now, scientists at Tokyo University of Science, Japan, engineered a long polymer with copper-containing side units that create regions with locally high copper density, boosting the antibacterial activity of hydrogen peroxide and paving the way to a new drug design concept.

The discovery of antibiotics was a huge breakthrough in medicine, which helped save countless lives. Unfortunately, their widespread use has led to the rapid evolution of highly resistant bacterial strains, which threaten to take humanity back to square one in the fight against infectious diseases. Even though researchers are seeking new design concepts for antibacterial drugs, the overall development of new agents is currently on the decline.

To tackle this serious problem, scientists at Tokyo University of Science, Japan, are exploring a novel approach to boost the in vivo antibacterial activity of hydrogen peroxide (H2O2), a commonly used disinfectant. In a recent study published in Macromolecular Rapid Communications, a team led by Assistant Professor Shigehito Osawa and Professor Hidenori Otsuka reported their success in enhancing H2O2 activity using carefully tailored copper-containing polymers.

To understand their approach, it helps to know how H2O2 acts against bacteria in the first place, and the role that copper plays. H2O2 can be decomposed into a hydroxyl radical (OH) and a hydroxide anion (OH−), the former of which is highly toxic to bacteria as it readily destroys certain biomolecules. Copper in its first oxidation state, Cu(I), can catalyze the splitting of H2O2 into a hydroxyl radical and a hydroxide anion, turning into Cu(II) in the process through oxidation (Figure 1). Curiously, H2O2 can also catalyze the reduction of Cu(II) to Cu(I), but only if this reaction is somehow facilitated. One way to achieve this is to have Cu(II)-containing complexes get close enough together.

However, when using Cu(II)-containing complexes dissolved in a solution, the only way for them to come close together is by accidentally bumping into each other, which requires an excessively high concentration of copper. The team found a workaround to this issue by drawing inspiration from cellular chemistry, as Dr. Osawa explains: "In living organisms, copper forms complexes with proteins to efficiently catalyze redox reactions. For example, tyrosinase has two copper complex sites in close proximity to each other, which facilitates the formation of reaction intermediates between oxygen species and copper complexes. We thought we could leverage this type of mechanism in artificially produced polymers with copper complexes, even if dispersed in a solution."

With this idea, the researchers developed a long polymer chain with dipicolylamine (DPA) as copper-containing complexes. These DPA-copper complexes were attached to the long polymer backbone as "pendant groups." When these polymers are dispersed in a solution, the Cu(II) atoms in the pendant groups are kept in close proximity and locally high densities, vastly increasing the chances that two of them will be close enough to be reduced to Cu(I) by H2O2. Through various experiments, the scientists demonstrated that the use of these tailored polymers resulted in higher catalytic activity for the splitting of H2O2, resulting in more OH even for lower concentrations of copper. Further tests using Escherichia coli cultures showed that these polymers greatly enhanced the antibacterial potential of H2O2.

While the results of this study open up a new design avenue for antimicrobial drugs, there may also be useful applications in the food industry as well. "Because copper is an essential nutrient for living organisms, the antibacterial agent developed in this study holds promise as an efficient food preservative, which could contribute to increasing the variety of foods that can be preserved over long shelf times," highlights Dr. Osawa. Let us hope this new strategy makes it easier for us to keep microscopic menaces at bay!

New Strategy for Drug Design: Keeping Copper Atoms Closer to Keep Bacteria Away

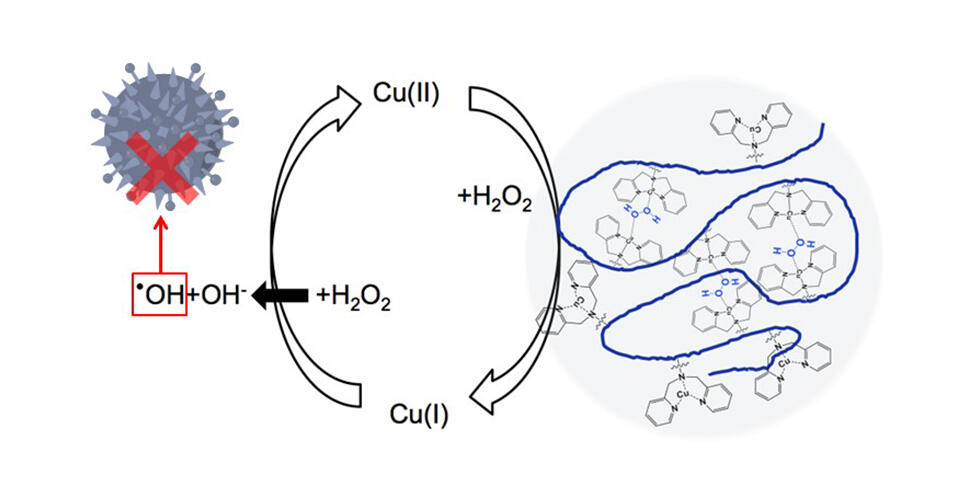

・Figure 1. Generating antibacterial hydroxyl radicals using copper as a catalyst

The proposed polymer, with its backbone shown in blue, creates regions with a high local density of copper side units (pendants). This helps reduce Cu(II) to Cu(I), the most difficult step in the redox reaction shown, to ultimately produce more hydroxyl radicals (OH).
Figure courtesy: Assistant Professor Shigehito Osawa

Title of original paper  : Accelerated Redox Reaction of Hydrogen Peroxide by Employing Locally Concentrated State of Copper Catalysts on Polymer Chain
Journal  : Macromolecular Rapid Communications
DOI  : 10.1002/marc.202100274
About The Tokyo University of Science

Tokyo University of Science (TUS) is a well-known and respected university, and the largest science-specialized private research university in Japan, with four campuses in central Tokyo and its suburbs and in Hokkaido. Established in 1881, the university has continually contributed to Japan's development in science through inculcating the love for science in researchers, technicians, and educators.

With a mission of "Creating science and technology for the harmonious development of nature, human beings, and society", TUS has undertaken a wide range of research from basic to applied science. TUS has embraced a multidisciplinary approach to research and undertaken intensive study in some of today's most vital fields. TUS is a meritocracy where the best in science is recognized and nurtured. It is the only private university in Japan that has produced a Nobel Prize winner and the only private university in Asia to produce Nobel Prize winners within the natural sciences field.

■Tokyo University of Science(About TUS) :
■Research List:
About Assistant Professor Shigehito Osawa from Tokyo University of Science

Shigehito Osawa obtained a PhD in Materials Engineering from the University of Tokyo, Japan, in 2016. He worked as a Research Scientist at the Kawasaki Institute of Industrial Promotion from 2016 to 2018. He joined Tokyo University of Science afterwards, where he now serves as Assistant Professor at the Department of Applied Chemistry. His research interests are in the fields of polymer materials and polymer chemistry. He has published 22 peer-reviewed papers.

About Professor Hidenori Otsuka from Tokyo University of Science

About Professor Motoyuki Shimonaka from Tokyo University of Science

About Assistant Professor Kenichi Kitanishi from Tokyo University of Science

Funding information

This work was financially supported by Grants-in-Aids for Scientific research of MEXT (JSPS KAKENHI Grant Number 18K18392 and 20K15346 to S.O.) from the Japanese Society of the Promotion of Science (JSPS).
